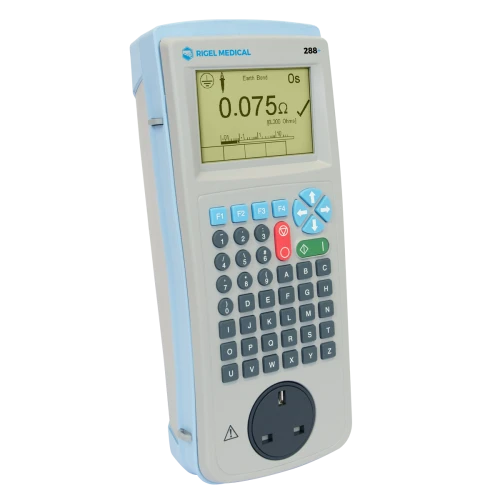

The Rigel 288+ electrical safety analyzer provides a fast, reliable, and highly accurate solution for testing the electrical safety of medical devices to both international and local standards, including IEC 60601 and 62353.
Designed for flexibility and ease of use, the Rigel 288+ allows complete freedom of movement thanks to its battery-powered operation. There’s no need for a mains connection, which makes it perfect for testing in clinical settings, on the move, or in hard-to-reach areas. Powered by standard AA batteries, the device supports a wide range of essential tests, including insulation resistance, earth/ground bond, and touch or point-to-point leakage current measurements.
Compact, portable, and easy to operate, the Rigel 288+ is ideal for routine safety checks, maintenance tasks, and field service work, making it a trusted tool for biomedical engineers worldwide.
Test to IEC/EN 62353, AAMI/IEC/EN 60601-1 & more
Built-in electronic data storage
Flexible user-definable test routines
Battery-powered leakage, insulation & earth/ground bond tests
50/100/250/500V DC insulation testing
Automatic secondary verification ensures the correct result first time
Small & compact with direct printing via Bluetooth connectivity
Available in a wide range of power configurations
Compatible with Med-eBase for simple asset management
Earth Continuity
Method
2 wire technique, using ‘zero’ lead function.
Test Current
>+200mA, -200mA DC into 2 ohms
Max Test Voltage
4-24V RMS o/c
Measuring Range (low range)
Measuring Range (mid range)
Measuring Range (high range)
PASS/FAIL Threshold
0.2 ohm
Accuracy
± 3% of reading + 10 m ohms
Insulation Resistance
Measurement
Voltage
50 / 100 / 250 & 500V DC @1mA
Range (low) @ 50V DC
0.01Mohms – 10 Mohms
Range (low) @ Above 50V DC
0.01Mohm – 20Mohm
Accuracy (low range)
± 5% of reading +2 counts
Range (high range) @ 250V DC
20Mohm – 50Mohm
Range (high range) @ 500V DC
20Mohm – 100Mohm
Accuracy (high range)
±10% +2 counts
Resolution
0.01Mohms
Direct Leakage Measurement
Measuring Range
Accuracy
± 5% or reading +2 counts
Mains on A.P. voltage
F-type only @ 110% of mains
Measuring Device
As per IEC 60601-1 requirements
Measurement Type
Differential Leakage Measurement
Measuring Range
Accuracy
±5% of reading + 5 counts
Measurement/display resolution
1μA
Measurement Type
True RMS
Measuring Device
Alternative Leakage Measurement
Test Voltage
Test Current
3.5 mA current limited
Measurement Range
4μA to 9999μA
Measurement Resolution
1μA
Measurement Accuracy
±5% of reading + 2 counts
Measurement Type
True RMS
Measuring Device
As per IEC 60601-1
General Specification
Mains Power
Battery
6 x 1.5V AA
Weights
1.6 kg / 3.5 lbs including batteries
Size
270 x 110 x 75 mm / 10.5 x 4 x 3”
Operating Conditions
0°C – 40°C
Storage Environment
-15’C – +60’C / 5’F – 140’F
Environmental Protection
IP40
Power Measurement
Range
Accuracy
±10% + 2 counts
IEC Mains Lead Test
Test Duration
Test
Mains Outlet Test
Input voltage range
Max current
16A
Measures
L – E, N – E
Accuracy
± 5% of reading + 2 counts
Standard Accessories (supplied with 288+)
Calibration certificate
Earth/ground bond clip lead
Patient Applied part module
10 Applied part adaptors
Detachable 2 meter mains cable
Bluetooth USB dongle
Electronic instruction manual
